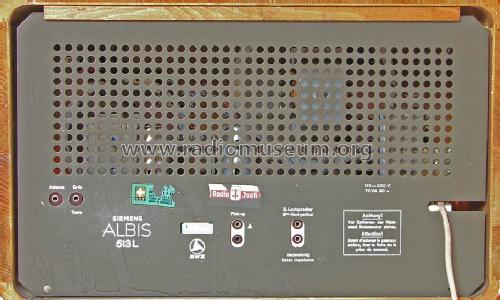

513L; Albis, Albiswerke AG (ID = 253522) Radio 513L; Albis, Albiswerke AG (ID = 253523) Radio
513L; Albis, Albiswerke AG (ID = 273269) Radio
Use red slider bar for more.
513L; Albis, Albiswerke AG (ID = 253522) Radio
Albis, Albiswerke AG: 513L [Radio] ID = 253522 875x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 513L, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EAF42 EL41 EM4 AZ41
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details WiredWirelessReceiver (AF or RF)
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 513L - Albis, Albiswerke AG Siemens
Material Wooden case
Dimensions (WHD) 540 x 360 x 238 mm / 21.3 x 14.2 x 9.4 inch
Notes mit Lokalsender-Einstellung
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 595.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
