533

533; Albis, Albiswerke AG (ID = 2130594) Radio

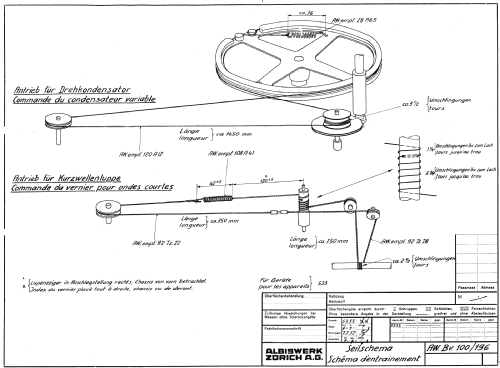

533; Albis, Albiswerke AG (ID = 2130595) Radio
533; Albis, Albiswerke AG (ID = 767514) Radio
Use red slider bar for more.
533; Albis, Albiswerke AG (ID = 767514) Radio
Albis, Albiswerke AG: 533 [Radio] ID = 767514 525x364
Select picture or schematic to display from thumbnails on the right and click for download.
For model 533, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EAF42 EL41 EM34
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 533 - Albis, Albiswerke AG Siemens
Material Wooden case
Dimensions (WHD) 536 x 366 x 236 mm / 21.1 x 14.4 x 9.3 inch
Notes KW-Lupe, UKW mögl.
Net weight (2.2 lb = 1 kg) 11.7 kg / 25 lb 12.3 oz (25.771 lb)
Price in first year of sale 595.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
