83; Albis, Albiswerke AG (ID = 1309) Radio

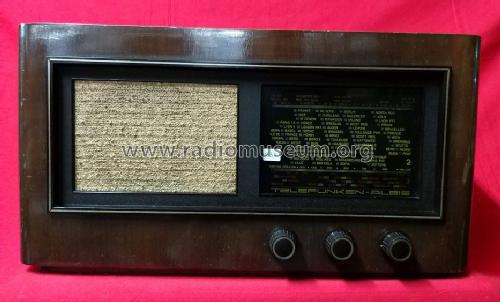

Albis, Albiswerke AG: 83 [Radio] ID = 1309 700x477
Select picture or schematic to display from thumbnails on the right and click for download.
For model 83, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ACH1 AF3 ABC1 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 83 - Albis, Albiswerke AG Siemens
Material Wooden case
Shape Tablemodel, low profile (big size).
Price in first year of sale 375.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
