93

93; Albis, Albiswerke AG (ID = 16088) Radio

93; Albis, Albiswerke AG (ID = 16089) Radio

93; Albis, Albiswerke AG (ID = 16090) Radio
93; Albis, Albiswerke AG (ID = 1313) Radio
Use red slider bar for more.
93; Albis, Albiswerke AG (ID = 1313) Radio
Albis, Albiswerke AG: 93 [Radio] ID = 1313 700x477
Select picture or schematic to display from thumbnails on the right and click for download.
For model 93, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ACH1 AF3 AB2 AL4 EFM1 AZ1
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 93 - Albis, Albiswerke AG Siemens
Material Wooden case
Dimensions (WHD) 525 x 306 x 262 mm / 20.7 x 12 x 10.3 inch
Notes var.BBr.
Price in first year of sale 385.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

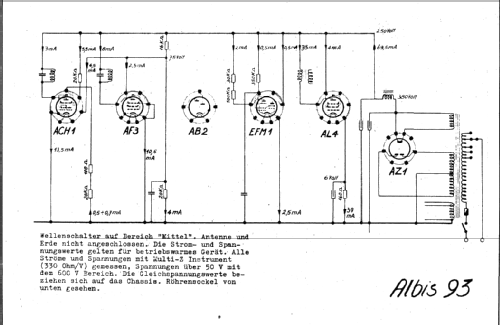

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
