93D

93D; Albis, Albiswerke AG (ID = 16084) Radio

93D; Albis, Albiswerke AG (ID = 16085) Radio

93D; Albis, Albiswerke AG (ID = 16086) Radio

93D; Albis, Albiswerke AG (ID = 16087) Radio

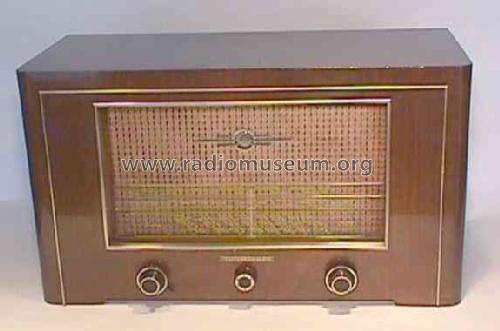

93D; Albis, Albiswerke AG (ID = 1445100) Radio 93D; Albis, Albiswerke AG (ID = 102913) Radio

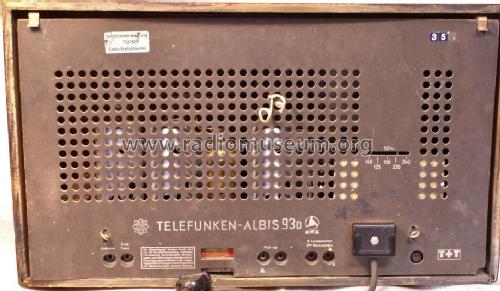

93D; Albis, Albiswerke AG (ID = 1445102) Radio 93D; Albis, Albiswerke AG (ID = 1445104) Radio
Use red slider bar for more.
93D; Albis, Albiswerke AG (ID = 1445100) Radio
Albis, Albiswerke AG: 93D [Radio] ID = 1445100 848x601
Select picture or schematic to display from thumbnails on the right and click for download.
For model 93D, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ACH1 AF3 AB2 AL4 EFM1 AZ1
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Wired Wireless Receiver(AF only)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: 93D - Albis, Albiswerke AG Siemens
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 525 x 306 x 261 mm / 20.7 x 12 x 10.3 inch
Notes var.BBr.
Net weight (2.2 lb = 1 kg) 13.3 kg / 29 lb 4.7 oz (29.295 lb)
Price in first year of sale 455.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Here you find 168 models, 139 with images and 141 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
