SVD-9 {СВД-9} scale round

Aleksandrov Radio Works (ARZ)

Dati

Forum

Immagini

Collezioni

Paese
Unione Sovietica

Produttore / Marca
Aleksandrov Radio Works (ARZ)

Anno
1937–1940

Categoria
Radio (o sintonizzatore del dopoguerra WW2)

Radiomuseum.org ID
80698

- alternative name: Alexandrov

Immagini
Schemi

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 180112) Radio — Aleksandrov Radio SVD-9 {СВД-9} (3)

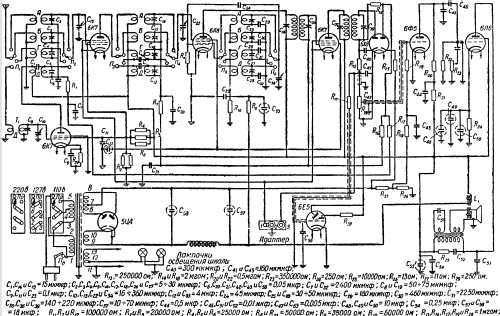

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 180113) Radio — Aleksandrov Radio SVD-9 {СВД-9} (3)

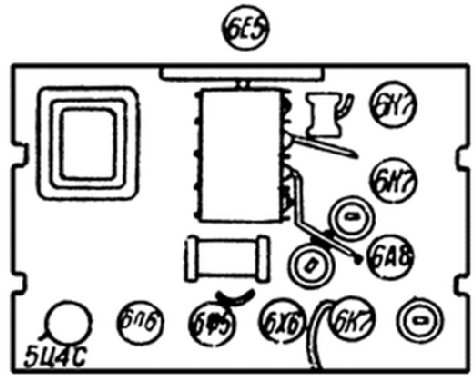

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 180114) Radio — Aleksandrov Radio SVD-9 {СВД-9} (3)

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 180115) Radio — Aleksandrov Radio SVD-9 {СВД-9} (3)

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 180116) Radio — Aleksandrov Radio SVD-9 {СВД-9} (3)

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 180117) Radio — Aleksandrov Radio SVD-9 {СВД-9} (3)

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 2242758) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)
Kaunas Lithuania

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 2242756) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)
Kaunas Lithuania

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 2242762) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)
Kaunas Lithuania

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 2242759) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)
Kaunas Lithuania

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 2242764) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)
Kaunas Lithuania

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 2242768) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)
Kaunas Lithuania

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 2242766) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)
Kaunas Lithuania

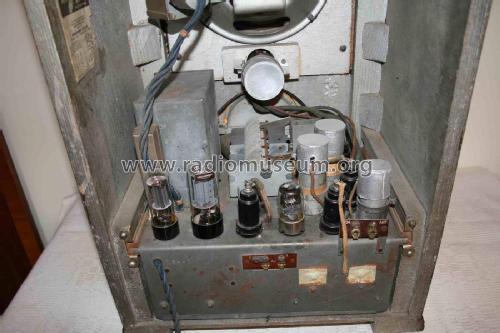

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 2242769) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)
Kaunas Lithuania

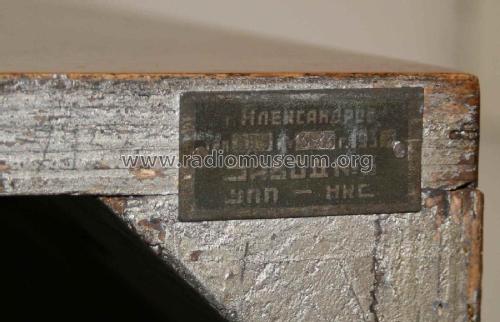

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 2242770) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)
Kaunas Lithuania

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 2242771) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)
Kaunas Lithuania

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 494134) Radio — Aleksandrov Radio SVD-9 {СВД-9} (2)
Thanks for Dmitry Gurjanov, Moscow, Russia

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 494138) Radio — Aleksandrov Radio SVD-9 {СВД-9} (2)
Thanks for Dmitry Gurjanov, Moscow, Russia

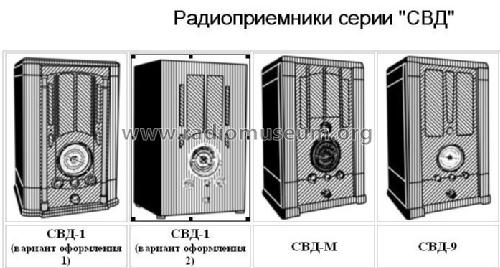

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 180400) Radio — Aleksandrov Radio SVD-9 {СВД-9} (2)
Thanks for Valery Charcenko, Russia

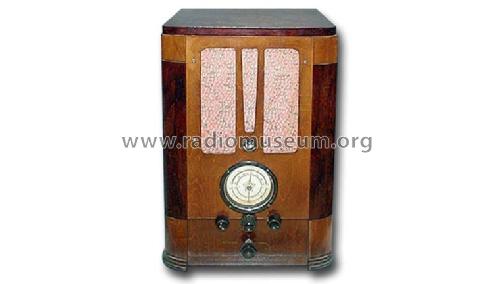

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 180516) Radio — Aleksandrov Radio SVD-9 {СВД-9} (2)

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 494133) Radio — Aleksandrov Radio SVD-9 {СВД-9} (2)
Thanks for Dmitry Gurjanov, Moscow, Russia

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 494135) Radio — Aleksandrov Radio SVD-9 {СВД-9} (2)
Thanks for Dmitry Gurjanov, Moscow, Russia

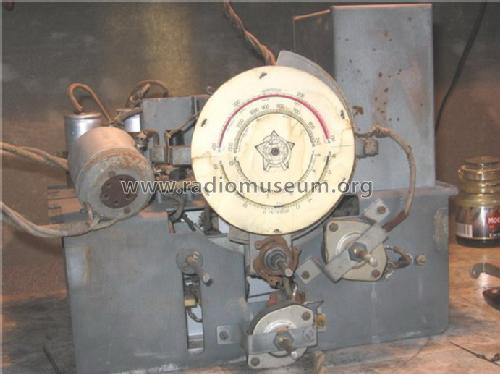

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 494136) Radio — Aleksandrov Radio SVD-9 {СВД-9} (2)
Thanks for Dmitry Gurjanov, Moscow, Russia

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 2010421) Radio — Aleksandrov Radio SVD-9 {СВД-9} (2)

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 722239) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 119016) Radio — Aleksandrov Radio SVD-9 {СВД-9} (2)

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 126090) Radio — Aleksandrov Radio SVD-9 {СВД-9} (2)
This design SVD9 modell of year 1940.

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 1260462) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 1260465) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)

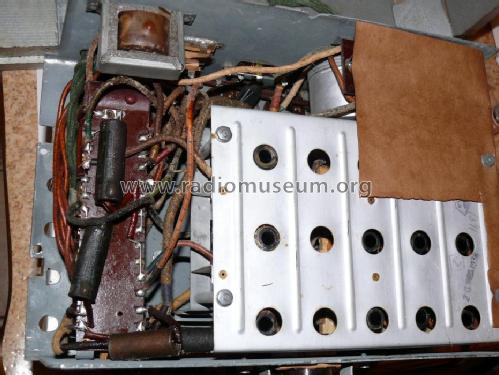

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 1260467) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)

SVD-9 {СВД-9}; Aleksandrov Radio (ID = 1260469) Radio — Aleksandrov Radio SVD-9 {СВД-9} (1)

Clicca sulla miniatura dello schema per richiederlo come documento gratuito.

Specifiche tecniche

Numero di tubi
9

Valvole
6К7 6К7 6А8 6К7 6Е5С 6Х6 6Ф5 6П3С 5Ц4С

Principio generale
Supereterodina con stadio RF; ZF/IF 445 kHz

Gamme d'onda
Onde medie (OM), lunghe (OL) e più di 2 gamme di onde corte (>2 x OC).

Tensioni di funzionamento
Alimentazione a corrente alternata (CA) / 110, 127, 220 Volt

Altoparlante
AP elettrodinamico (bobina mobile e bobina di eccitazione/di campo) / Ø 22 cm = 8.7 inch

Potenza d'uscita
4 W (qualità ignota)

Materiali
Mobile in legno

Radiomuseum.org
Modello: SVD-9 {СВД-9} [scale round] - Aleksandrov Radio Works ARZ

Forma
Soprammobile verticale (sviluppato in altezza; no cattedrale, sin decorazioni).

Dimensioni (LxAxP)
360 x 560 x 290 mm / 14.2 x 22 x 11.4 inch

Annotazioni
The model SVD-9 has two RF-stages. The first RF-stage is only for the SW 16 m band. Tube 6p3s or 6l6.

Peso netto
25 kg / 55 lb 1.1 oz (55.066 lb)

Bibliografia
Past SU magazine RADIOFRONT Nr.19 -1938, Nr.04-1939
