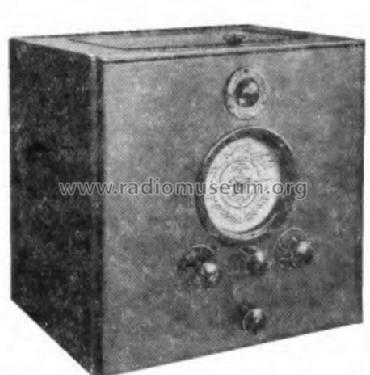

TM-8 {ТМ-8}

Aleksandrov Radio Works (ARZ)

Data
Forum
Pictures
Collections

  • Year
  • 1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 91665
    • alternative name: Alexandrov

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 445 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: TM-8 {ТМ-8} - Aleksandrov Radio Works ARZ
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 350 x 340 x 275 mm / 13.8 x 13.4 x 10.8 inch
  • Notes
  • Radio set for line broadcast to several laudspeakers.
    Prototype - SU radio set SVD-M (see RMorg).
  • Source of data
  • -- Collector info (Sammler)
  • Mentioned in
  • -- Schematic
  • Author
  • Model page created by Zenonas Langaitis. See "Data change" for further contributors.
