• Country
• Italy

• Manufacturer / Brand
• Alfa Radio; Genova (ved. anche Silco-Silvio Costa)

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115121

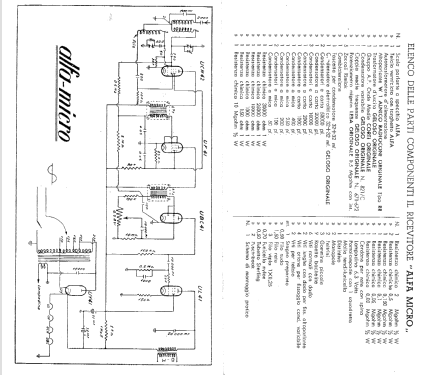

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UBC41 UF41 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.2 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Micro [Avorio] - Alfa Radio; Genova ved. anche

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 240 x 140 x 120 mm / 9.4 x 5.5 x 4.7 inch

• Notes

• Altoparlante Radioconi mod. W1.

  Disponibile anche in scatola di montaggio.

• Price in first year of sale
• 10,800.00 ITL

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
