For model 115, Allocchio Bacchini (Radialba); Milano

Country:  Italy
Manufacturer / Brand:  Allocchio Bacchini (Radialba); Milano
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner

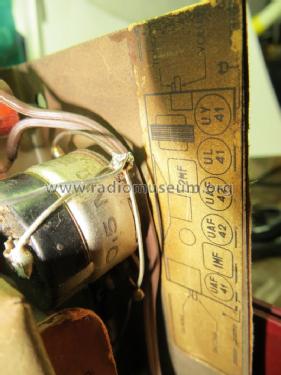

Valves / Tubes 5: UCH41 UAF42 UAF42 UL41 UY41
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (undistorted)
from Radiomuseum.org Model: 115 - Allocchio Bacchini Radialba;
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 250 x 160 x 140 mm / 9.8 x 6.3 x 5.5 inch

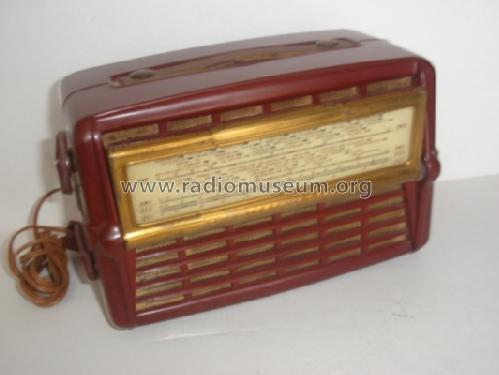

Notes Scala parlante inclinabile. Diverse varianti di colore. Con maniglia di trasporto. Sintonia ad induttanza variabile. Controllo automatico di volume. Alimentazione CA con autotrasformatore. Gamme d'onda: 2 medie e 2 corte.

Sintonia a inductancia variable. Alimentación con autotransformador.
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 11)

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
