For model 425, Allocchio Bacchini (Radialba); Milano

Country:  Italy
Manufacturer / Brand:  Allocchio Bacchini (Radialba); Milano
Year: 1955–1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 or UCH81 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: 425 - Allocchio Bacchini Radialba;
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 250 x 160 x 140 mm / 9.8 x 6.3 x 5.5 inch
Notes

Onde Medie + 3 gamme di Onde Corte. Serie ANIE.

Scala parlante orientabile per poterla osservare con l'apparecchio di fronte oppure in alto.

Late models can be equipped with an UCH81 instead of the UCH42. They can't be interchanged due to a different base (Rimlock vs. Noval B9A)

Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Price in first year of sale 29'000.00 ITL
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Catalogo ANIE (1955-56 e 1956-57)

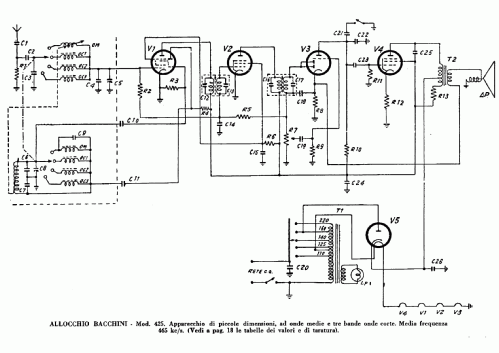

Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
