Albi 80

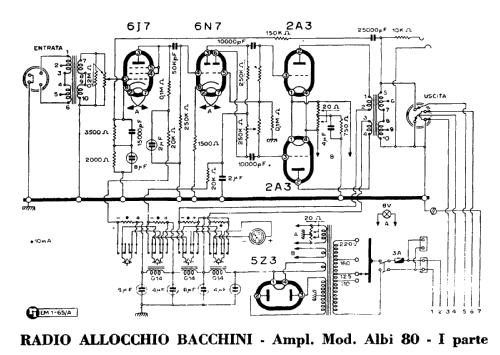

Albi 80; Allocchio Bacchini (ID = 970617) Ampl/Mixer

Albi 80; Allocchio Bacchini (ID = 970618) Ampl/Mixer

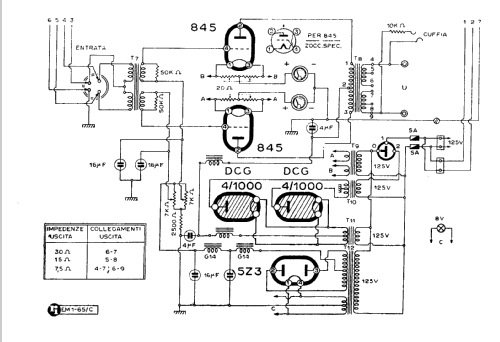

Albi 80; Allocchio Bacchini (ID = 970619) Ampl/Mixer
Use red slider bar for more.
Albi 80; Allocchio Bacchini (ID = 970617) Ampl/Mixer
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Allocchio Bacchini (Radialba); Milano
Year: 1942 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 14: 6J7 6N7 2A3 2A3 50 50 845 845 DCG4/1000 DCG4/1000 5Z3 5Z3 5Z3 5Z3
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Albi 80 - Allocchio Bacchini Radialba;
Shape Tablemodel, with any shape - general.
Literature/Schematics (1) Il Manuale del Radiomeccanico (Vol.3°)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
