Autonola III

Autonola III ; Allocchio Bacchini (ID = 36425) Car Radio

Autonola III ; Allocchio Bacchini (ID = 214191) Car Radio

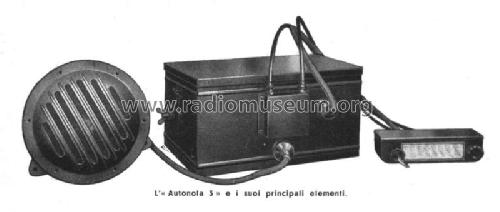

Autonola III ; Allocchio Bacchini (ID = 1225003) Car Radio Autonola III ; Allocchio Bacchini (ID = 1225004) Car Radio
Use red slider bar for more.
Autonola III ; Allocchio Bacchini (ID = 1225003) Car Radio
Allocchio Bacchini: Autonola III [Car Radio] ID = 1225003 800x497
Select picture or schematic to display from thumbnails on the right and click for download.
For model Autonola III, Allocchio Bacchini (Radialba); Milano:
da documenti d'epoca

Country:  Italy
Manufacturer / Brand:  Allocchio Bacchini (Radialba); Milano
Year: 1938/1939 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: 6K7 6A8 6K7 6Q7 41
Main principle Superheterodyne (common); ZF/IF 260 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 6/12 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Autonola III - Allocchio Bacchini Radialba;
Material Metal case
Notes

Alimentazione a mezzo dinamotore. Cambio tensioni di alimentazione delle valvole con morsettiera interna.
L'altoparlante, collegato con apposita spina, poteva essere sia elettrodinamico che magnetodinamico.

Source of data Guida Pratica Antique Radio (1) 1999
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
Literature/Schematics (2) Schemario di apparecchi radio a valvole (D. E. Ravalico - Hoepli - 1944)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
