F64M (F 64 M, 64FM) Ch=F64

F64M Ch=F64; Allocchio Bacchini (ID = 39108) Radio
F64M Ch=F64; Allocchio Bacchini (ID = 1467414) Radio F64M Ch=F64; Allocchio Bacchini (ID = 1224704) Radio
F64M Ch=F64; Allocchio Bacchini (ID = 1224705) Radio F64M Ch=F64; Allocchio Bacchini (ID = 1407438) Radio
F64M Ch=F64; Allocchio Bacchini (ID = 1467474) Radio F64M Ch=F64; Allocchio Bacchini (ID = 1467475) Radio
F64M Ch=F64; Allocchio Bacchini (ID = 1467476) Radio F64M Ch=F64; Allocchio Bacchini (ID = 1467477) Radio

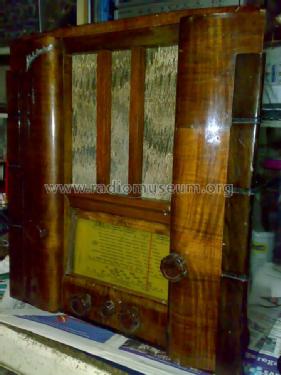

F64M Ch=F64; Allocchio Bacchini (ID = 1467478) Radio F64M Ch=F64; Allocchio Bacchini (ID = 1467479) Radio
Use red slider bar for more.
F64M Ch=F64; Allocchio Bacchini (ID = 1467414) Radio
Allocchio Bacchini: F64M Ch=F64 [Radio] ID = 1467414 600x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model F64M (F 64 M, 64FM) Ch=F64, Allocchio Bacchini (Radialba); Milano

Country:  Italy
Manufacturer / Brand:  Allocchio Bacchini (Radialba); Milano
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 78 6A7 78 75 42 80
Main principle Superheterodyne (common); ZF/IF 425 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: F64M Ch=F64 - Allocchio Bacchini Radialba;
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes Meter
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Guida Pratica Antique Radio II (2000) (errata corrige al vol. I)
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Allocchio Bacchini (Radialba); Milano
Here you find 302 models, 203 with images and 203 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
