OC11

OC11; Allocchio Bacchini (ID = 2207066) Commercial Re

OC11; Allocchio Bacchini (ID = 2207067) Commercial Re

OC11; Allocchio Bacchini (ID = 2511697) Commercial Re

OC11; Allocchio Bacchini (ID = 2511698) Commercial Re

OC11; Allocchio Bacchini (ID = 2511699) Commercial Re
OC11; Allocchio Bacchini (ID = 2511409) Commercial Re
Use red slider bar for more.
OC11; Allocchio Bacchini (ID = 2511409) Commercial Re
Allocchio Bacchini: OC11 [Commercial Re] ID = 2511409 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model OC11, Allocchio Bacchini (Radialba); Milano

Country:  Italy
Manufacturer / Brand:  Allocchio Bacchini (Radialba); Milano
Year: 1950 ?? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 13: 6AK5 6AK5 6BA6 6BA6 6BE6 12AU7 6BA6 12AU7 6BA6 12AU7 6AT6 6AT6 6AQ5 0A2

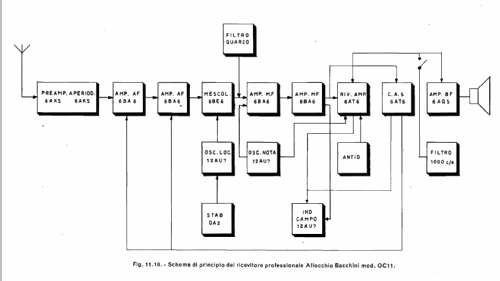

Main principle Superheterodyne (common)
Wave bands Short Wave (SW only)
Details
Power type and voltage Line (AC, UC or DC not known)
Loudspeaker
Power out
from Radiomuseum.org Model: OC11 - Allocchio Bacchini Radialba;

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Allocchio Bacchini (Radialba); Milano
Here you find 303 models, 203 with images and 204 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
