• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1955–1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 170329

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6BE6 6AU6 6BV7 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 200-230; 230-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

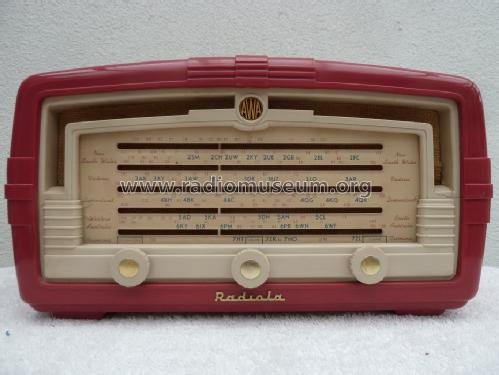

• Model: Radiola 467MA - Amalgamated Wireless

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 340 x 190 x 180 mm / 13.4 x 7.5 x 7.1 inch

• Notes

• This radio was also rebadged as a "Hotpoint" brand radio, model P64MEX. It has the same cabinet and chassis and a similar dial, but the dial escutcheon is different.

  Colours available in Walnut, Burgundy, Ivory & Grey.



• Net weight (2.2 lb = 1 kg)
• 4.6 kg / 10 lb 2.1 oz (10.132 lb)

• Price in first year of sale
• 19.95 AUS £

• Mentioned in
• Also mentioned in Australian "Silicon Chip" magazine December 2000.

• Literature/Schematics (1)
• - - Manufacturers Literature (AWA Technical Information & Service Data.)

• Literature/Schematics (2)
• J.R. Publications Radio Service Handbook (R.V. Series, Vol. 1, 1963, Page A101.)

• Author
• Model page created by Roger Brinkman. See "Data change" for further contributors.
