AWA 70 Watt Amplifier PA PA-827

AWA 70 Watt Amplifier PA PA-827; Amalgamated Wireless (ID = 2393533) Ampl/Mixer
AWA 70 Watt Amplifier PA PA-827; Amalgamated Wireless (ID = 2393529) Ampl/Mixer AWA 70 Watt Amplifier PA PA-827; Amalgamated Wireless (ID = 2393531) Ampl/Mixer

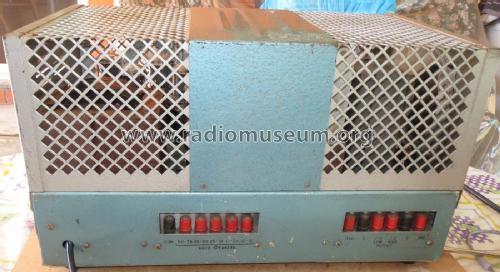

AWA 70 Watt Amplifier PA PA-827; Amalgamated Wireless (ID = 2393530) Ampl/Mixer AWA 70 Watt Amplifier PA PA-827; Amalgamated Wireless (ID = 2393532) Ampl/Mixer
Use red slider bar for more.
AWA 70 Watt Amplifier PA PA-827; Amalgamated Wireless (ID = 2393529) Ampl/Mixer
Amalgamated Wireless: AWA 70 Watt Amplifier PA PA-827 [Ampl/Mixer] ID = 2393529 1400x741
Select picture or schematic to display from thumbnails on the right and click for download.
For model AWA 70 Watt Amplifier PA PA-827, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:
AWA PA827 Front

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1954 Category: Audio Amplifier or -mixer
Valves / Tubes 10: 5R4 6AQ5 6AU6 6AU6 6AV6 12AU7 KT66 KT66 KT66 KT66
Main principle Audio-Amplification
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 70 W (max.)
from Radiomuseum.org Model: AWA 70 Watt Amplifier PA PA-827 - Amalgamated Wireless
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 430 x 230 x 240 mm / 16.9 x 9.1 x 9.4 inch
Notes

This particular unit was possibly a proto type as its serial number is 2 and appears to have been mounted in a bank of at least 3 on top of each other. A former AWA employee also thought the same.

There are also several cosmetic and electronic changes that were made for the units that were released in 1954.

This model was reviewed in Radio and Hobbies, May 1954, page 79

Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Mentioned in -- Original prospect or advert (Radio and Hobbies, May 1954, page 79)
