Radiola DX11 Ch= TX31

Radiola DX11 Ch= TX31; Amalgamated Wireless (ID = 2071657) Television
Use red slider bar for more.
Radiola DX11 Ch= TX31; Amalgamated Wireless (ID = 2071657) Television
Amalgamated Wireless: Radiola DX11 Ch= TX31 [Television] ID = 2071657 1400x1723
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola DX11 Ch= TX31, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:

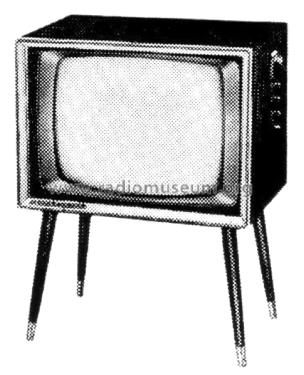

Image from Andrew McCallum.

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1961/1962 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: 6ES8 6EA8 6AU6 6AL5 6EB8 6BZ6 6EW6 6CB6 6EB8 6BU8 6EM7 6AL5 6CG7 6DQ6A 6AU4GTA 1B3GT 5AS4 23MP4
Semiconductors (the count is only for transistors) GD3 M3
Main principle Superhet with RF-stage; 2 AF stage(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 190-210; 220-230; 240-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Radiola DX11 Ch= TX31 - Amalgamated Wireless
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 26 x 19 x 17 inch / 660 x 483 x 432 mm
Notes

23 inch B&W television tunes the 13 standard Australian VHF channels.

Height doesn't include legs. Legs 12" in length.

Cabinet finishes available in Walnut, Maple & Mahogany.

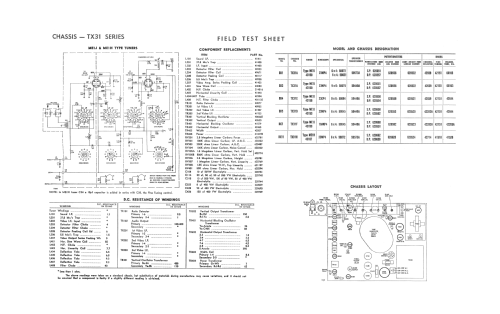

Literature/Schematics (1) - - Manufacturers Literature (AWA Manufacturers Supervised Service for TX31 Series chassis, Jan 1962.)
Literature/Schematics (2) J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & 1967, Page A95.)
