• Year
  • 1961/1962
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 235013

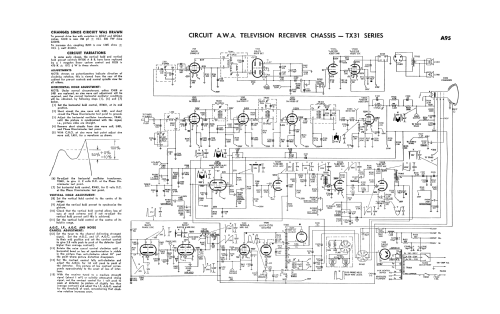

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 18
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage; 2 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 190-210; 220-230; 240-260 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radiola DX4 Ch= TX31C - Amalgamated Wireless
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 27 x 33.5 x 18 inch / 686 x 851 x 457 mm
  • Notes
  • 23 inch B&W television tunes the 13 standard Australian VHF channels.

    Cabinet finishes available in Walnut, Maple & Mahogany.

  • Price in first year of sale
  • 208.95 AUS £
  • Literature/Schematics (1)
  • - - Manufacturers Literature (AWA Manufacturers Supervised Service TX31 Series, January 1962.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
