AWA PA-MA Mixer 1G59399

AWA PA-MA Mixer 1G59399; Amalgamated Wireless (ID = 2394331) Ampl/Mixer
AWA PA-MA Mixer 1G59399; Amalgamated Wireless (ID = 2394327) Ampl/Mixer AWA PA-MA Mixer 1G59399; Amalgamated Wireless (ID = 2394329) Ampl/Mixer
AWA PA-MA Mixer 1G59399; Amalgamated Wireless (ID = 2394328) Ampl/Mixer
Use red slider bar for more.
AWA PA-MA Mixer 1G59399; Amalgamated Wireless (ID = 2394327) Ampl/Mixer
Amalgamated Wireless: AWA PA-MA Mixer 1G59399 [Ampl/Mixer] ID = 2394327 1400x536
Select picture or schematic to display from thumbnails on the right and click for download.
For model AWA PA-MA Mixer 1G59399, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:

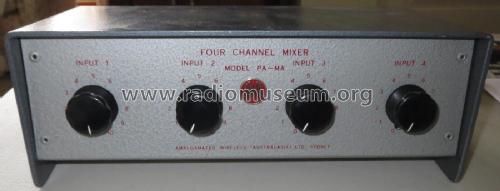

AWA PA-MA Front

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1964 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 5: 2N217 2N217 2N217 2N217 2N217 OA85 OA85
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 6.3AC Volt
Loudspeaker
Power out
from Radiomuseum.org Model: AWA PA-MA Mixer 1G59399 - Amalgamated Wireless
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 220 x 100 x 140 mm / 8.7 x 3.9 x 5.5 inch
Notes

This was a small add on mixer that could be used on its own or to add inputs to other amplifier/mixers

Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Joshua Boxer. See "Data change" for further contributors.
