Radiola Transistor Seven B19

Radiola Transistor Seven B19; Amalgamated Wireless (ID = 1685749) Radio
Radiola Transistor Seven B19; Amalgamated Wireless (ID = 2626288) Radio Radiola Transistor Seven B19; Amalgamated Wireless (ID = 2626289) Radio
Radiola Transistor Seven B19; Amalgamated Wireless (ID = 2626287) Radio Radiola Transistor Seven B19; Amalgamated Wireless (ID = 2439545) Radio
Use red slider bar for more.
Radiola Transistor Seven B19; Amalgamated Wireless (ID = 2626288) Radio

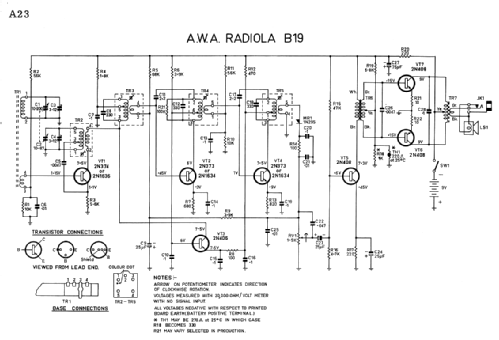

Amalgamated Wireless: Radiola Transistor Seven B19 [Radio] ID = 2626288 1400x836
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola Transistor Seven B19, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1961–1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N374 or. 2N1636 2N373 or. 2N1634 2N406 2N373 or. 2N1634 2N408 2N408 2N408 1N295
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
Power out
from Radiomuseum.org Model: Radiola Transistor Seven B19 - Amalgamated Wireless
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6.125 x 3.625 x 2 inch / 156 x 92 x 51 mm
Notes

Model B19 is a seven transistor, battery operated super-heterodyne portable receiver designed for reception of the Medium Wave Band.

Features of design include:-

Ferrite rod aerial; high gain I.F. transformers; autodyne converter; high sensitivy 2¾ inch permanent magnet speaker; printed circuit giving compact size.

  • With Leather carrying case.
  • Earpiece socket.
  • Dial scales to suit individual States.
  • Battery Eveready Type 2362.
  • Weight includes battery.
  • Colours available in Charcoal, Beige, Red, Blue & Tan/White.
  • See also Electrice E720PP & Westinghouse W720PP.
Net weight (2.2 lb = 1 kg) 1 lb 4 oz (1.25 lb) / 0.568 kg
Price in first year of sale 27.30 AUS £
Literature/Schematics (1) - - Manufacturers Literature (AWA Manufacturers Supervised Service, March 1962.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Vol. 1, 1960 Supplement, Page A14.)
Literature/Schematics (3) J.R. Publications Transistor Radio Service Handbook (A Series Handbook, Page A23. [Also at KevinChant.com])
Literature/Schematics (4) Mingay's Price Service (Feb 1962 to Aug 1963.)
