B24

B24; Amalgamated Wireless (ID = 1422187) Radio

B24; Amalgamated Wireless (ID = 1422188) Radio
B24; Amalgamated Wireless (ID = 1422185) Radio B24; Amalgamated Wireless (ID = 1422186) Radio
B24; Amalgamated Wireless (ID = 1432922) Radio B24; Amalgamated Wireless (ID = 1432923) Radio
B24; Amalgamated Wireless (ID = 1432924) Radio
Use red slider bar for more.
B24; Amalgamated Wireless (ID = 1422185) Radio
Amalgamated Wireless: B24 [Radio] ID = 1422185 930x618
Select picture or schematic to display from thumbnails on the right and click for download.
For model B24, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:
Main photo. This example has a red case. The tuning bias of these radios towards the lower frequencies is evident. The tuning is set to about 1000kHz which is a long way counter-clockwise from mid scale.

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N374 or. 2N1636 2N373 or. 2N1634 2N406 2N373 or. 2N1634 2N408 2N406 2N406 1N295
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: B24 - Amalgamated Wireless
Material Special material, described in the notes.
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6.125 x 3.625 x 1.75 inch / 156 x 92 x 44 mm
Notes

Combination plastic and diecast metal frame with leather carrying case, quite heavy for its size.

Similar electrically to AWA model B19.

Colours available in Blue, Red, Green & Driftwood.

Net weight (2.2 lb = 1 kg) 1 lb 8 oz (1.5 lb) / 0.681 kg
Price in first year of sale 27.30 AUS £
Literature/Schematics (1) - - Manufacturers Literature (AWA Manufacturers Supervised Service for Models B19, B19Y, B19Z, B24, B24Z & B54 , Feburary 1966.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Group C3, 1966, Page A36.)

Model page created by Gilles Vrignaud. See "Data change" for further contributors.



All listed radios etc. from Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Here you find 1301 models, 642 with images and 404 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Amalgamated Wireless: B24
Threads: 1 | Posts: 1
Hits: 1030     Replies: 0
amalgamate: B24;
Brian Wilson
25.Mar.13
  1

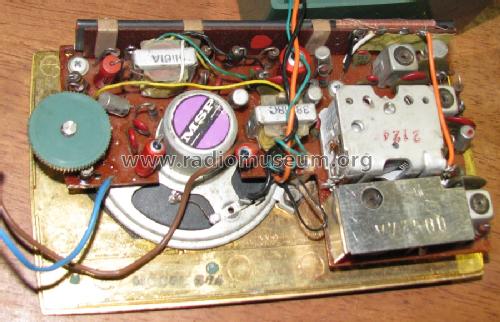

Of the small AWA hand held portables, the B24 differs in that it has a die-cast metal fascia and a hatch on the lower right hand side for access to the battery. The schematic and circuit board are used in the B19, B24 and B52 series of radios.

Differences between the models indicated by the suffix include, at least, the bail type carrying handle and a socket fro external power.
