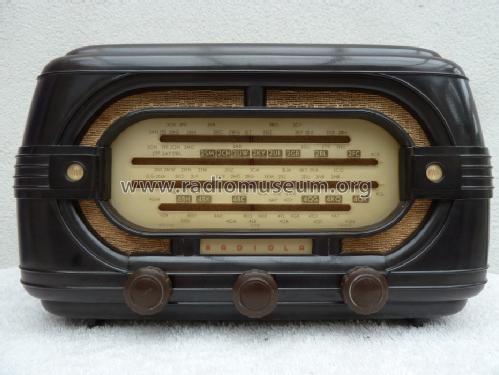

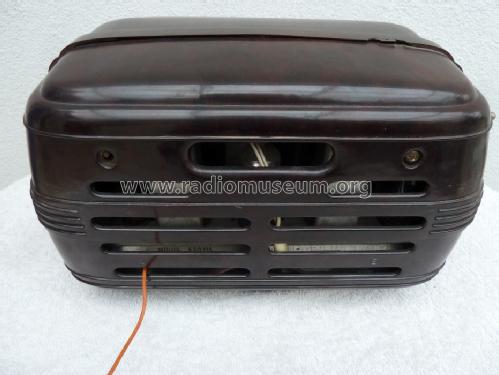

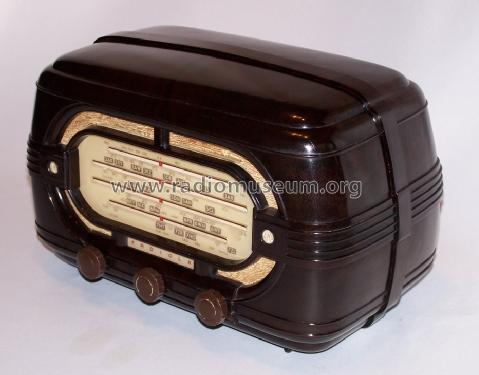

Radiola Champion 4 429MA

Radiola Champion 4 429MA; Amalgamated Wireless (ID = 1298654) Radio

Radiola Champion 4 429MA; Amalgamated Wireless (ID = 1298655) Radio

Radiola Champion 4 429MA; Amalgamated Wireless (ID = 1298656) Radio

Radiola Champion 4 429MA; Amalgamated Wireless (ID = 1298660) Radio

Radiola Champion 4 429MA; Amalgamated Wireless (ID = 1298661) Radio

Radiola Champion 4 429MA; Amalgamated Wireless (ID = 1298662) Radio
Radiola Champion 4 429MA; Amalgamated Wireless (ID = 2357674) Radio Radiola Champion 4 429MA; Amalgamated Wireless (ID = 633670) Radio
Radiola Champion 4 429MA; Amalgamated Wireless (ID = 633671) Radio Radiola Champion 4 429MA; Amalgamated Wireless (ID = 947617) Radio

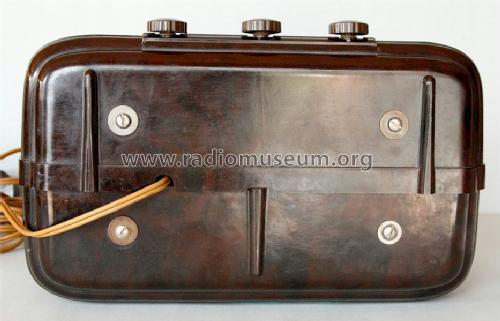

Radiola Champion 4 429MA; Amalgamated Wireless (ID = 1235996) Radio Radiola Champion 4 429MA; Amalgamated Wireless (ID = 1235997) Radio
Radiola Champion 4 429MA; Amalgamated Wireless (ID = 1235998) Radio Radiola Champion 4 429MA; Amalgamated Wireless (ID = 1235999) Radio

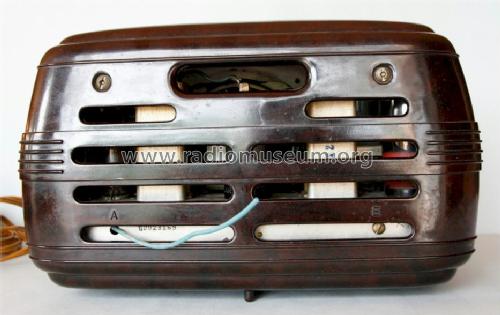

Radiola Champion 4 429MA; Amalgamated Wireless (ID = 1236000) Radio Radiola Champion 4 429MA; Amalgamated Wireless (ID = 1236003) Radio
Use red slider bar for more.
Radiola Champion 4 429MA; Amalgamated Wireless (ID = 2357674) Radio
Amalgamated Wireless: Radiola Champion 4 429MA [Radio] ID = 2357674 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola Champion 4 429MA, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner

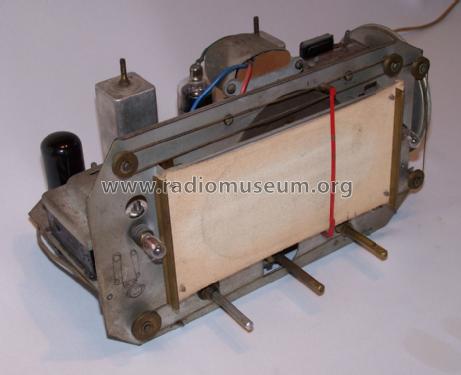

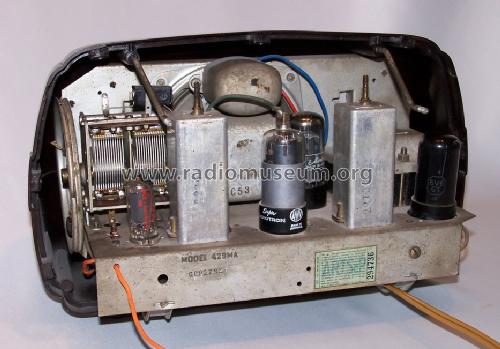

Valves / Tubes 4: 6BE6 6AR7GT N78 or KT61 5Y3GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1.5 W (undistorted)
from Radiomuseum.org Model: Radiola Champion 4 429MA - Amalgamated Wireless
Material Bakelite case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 12.875 x 7.75 x 7.25 inch / 327 x 197 x 184 mm
Notes

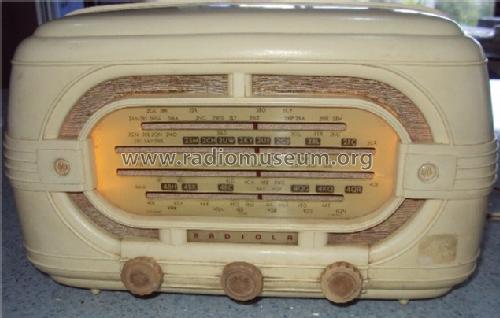

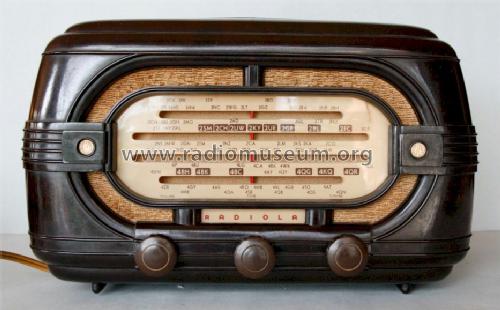

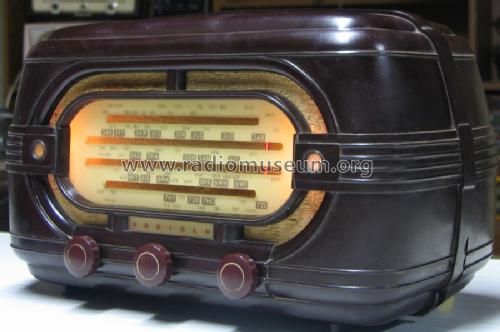

This model was available in 3 colours; walnut, ivory and burgundy.

Net weight (2.2 lb = 1 kg) 12 lb (12 lb 0 oz) / 5.448 kg
Circuit diagram reference Australian Official Radio Service Manual Vol. VIII

Model page created by Stuart Irwin. See "Data change" for further contributors.
