Radiola 45E C79

Radiola 45E C79; Amalgamated Wireless (ID = 2392688) Radio
Radiola 45E C79; Amalgamated Wireless (ID = 2328314) Radio Radiola 45E C79; Amalgamated Wireless (ID = 2328315) Radio
Radiola 45E C79; Amalgamated Wireless (ID = 2471236) Radio Radiola 45E C79; Amalgamated Wireless (ID = 2471231) Radio
Radiola 45E C79; Amalgamated Wireless (ID = 2471232) Radio Radiola 45E C79; Amalgamated Wireless (ID = 2471233) Radio
Radiola 45E C79; Amalgamated Wireless (ID = 2471234) Radio Radiola 45E C79; Amalgamated Wireless (ID = 2471235) Radio
Radiola 45E C79; Amalgamated Wireless (ID = 2392690) Radio
Use red slider bar for more.
Radiola 45E C79; Amalgamated Wireless (ID = 2328314) Radio
Amalgamated Wireless: Radiola 45E C79 [Radio] ID = 2328314 529x815
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 45E C79, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:
AWA Radiola 45E. Photo used with permission from owner.

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 224A 224A 224A 245 280
Main principle TRF without regeneration; 1 AF stage(s); Screengrid 1926-1935
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 190-270 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Radiola 45E C79 - Amalgamated Wireless
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

5 Valve, AC powered, Screen Grid, TRF Receiver with Linear Power Detection and one stage of audio amplification.

Chassis:
The chassis has provision for an aerial Local/Distance Switch, phonograph audio inputs and a Radio/Phono change over switch.  Also provision has been made to use either an Electromagnetic or permanent magnet speaker with a field compensating resistor included. There is a power socket mounted on the rear of chassis for powering a phonograph. The chassis is also used in the Duoforte 45E.

The chassis has two large boxes on the rear. One houses the power transformer and the other the power smoothing components.

Cabinet:
Console style, Walnut cabinet with volume, tuning and tone controls, plus aerial Local/Distance switch and Phono Input Switch on the front panel.

Price in first year of sale 40.00 Aus£
Mentioned in The Golden Age of Radio in the Home 1986 (P151)

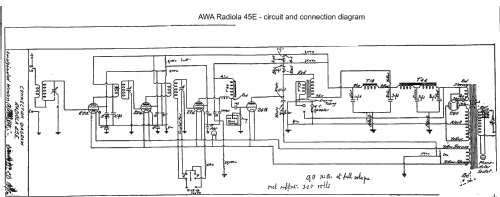

Literature/Schematics (1) - - Manufacturers Literature (AWA Radiola service Instruction 1931)
Documents regarding this model
  AWA 45E C79 Service Data. 134 KB
  AWA 45E 45B 1931 Brochure 976 KB

Model page created by Stuart Irwin. See "Data change" for further contributors.



All listed radios etc. from Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Here you find 1301 models, 642 with images and 404 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
