• Year
  • 1950–1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 190059

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 200-230; 230-260 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 3.5 W (undistorted)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: Radiola Champion 5 527MA - Amalgamated Wireless
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 16 x 10 x 9.5 inch / 406 x 254 x 241 mm
  • Notes
  • The cabinet was available in one of three colours: Walnut or Burgundy. Ivory extra for £37/1/-.

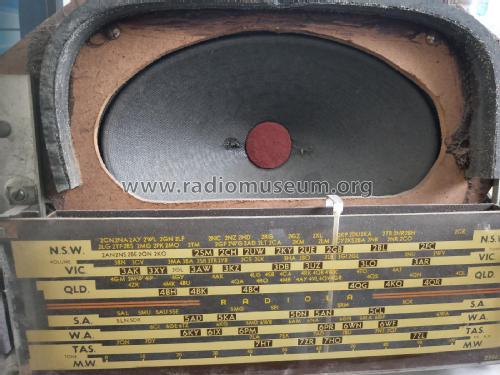

    The speaker in this model is elliptical, 9 by 6 inch.

    See also Hotpoint V5.

  • Net weight (2.2 lb = 1 kg)
  • 24 lb (24 lb 0 oz) / 10.896 kg
  • Price in first year of sale
  • 36.00 AUS £
  • Circuit diagram reference

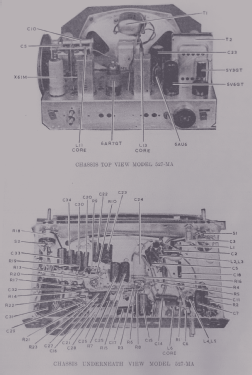

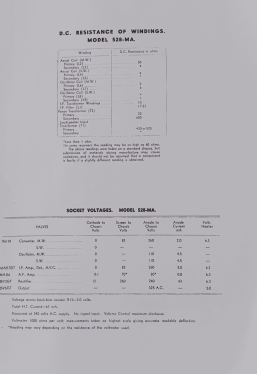

  • Australian Official Radio Service Manual Vol. IX
  • Literature/Schematics (1)

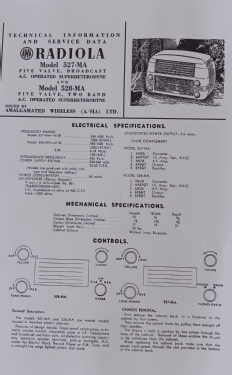

  • - - Manufacturers Literature (AWA Technical Information & Service Data.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
