Radiola 573MA

Radiola 573MA; Amalgamated Wireless (ID = 1430512) Radio
Radiola 573MA; Amalgamated Wireless (ID = 2382217) Radio Radiola 573MA; Amalgamated Wireless (ID = 2382216) Radio
Radiola 573MA; Amalgamated Wireless (ID = 2382218) Radio Radiola 573MA; Amalgamated Wireless (ID = 1514983) Radio
Radiola 573MA; Amalgamated Wireless (ID = 1430510) Radio Radiola 573MA; Amalgamated Wireless (ID = 1430511) Radio
Radiola 573MA; Amalgamated Wireless (ID = 1516450) Radio Radiola 573MA; Amalgamated Wireless (ID = 2409920) Radio
Radiola 573MA; Amalgamated Wireless (ID = 2409921) Radio
Use red slider bar for more.
Radiola 573MA; Amalgamated Wireless (ID = 2382217) Radio
Amalgamated Wireless: Radiola 573MA [Radio] ID = 2382217 1013x858
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 573MA, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1955–1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BA6 6AV6 6AQ5 6X4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-230; 230-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Radiola 573MA - Amalgamated Wireless
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 360 x 220 x 200 mm / 14.2 x 8.7 x 7.9 inch
Notes

Colours available in Brown, Burgundy, Ivory & Grey.

See also Hotpoint Z55ME.

Price in first year of sale 23.10 AUS £

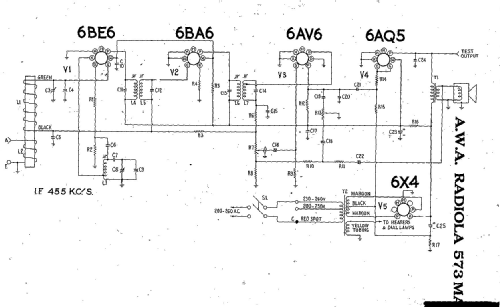

Circuit diagram reference Australian Official Radio Service Manual Vol. XIV
Literature/Schematics (1) - - Manufacturers Literature (AWA Technical Information & Service Data.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A114.)
Literature/Schematics (3) Australian Official Radio Service Manual AORSM (Volume 14, 1956, Page 89.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
