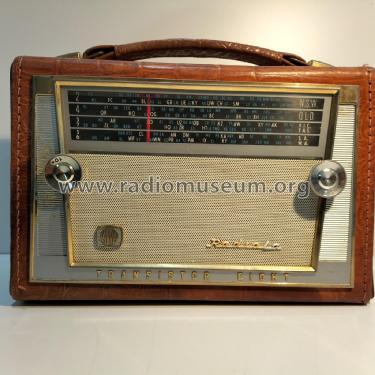

Radiola Transistor 8 208-P

Radiola Transistor 8 208-P; Amalgamated Wireless (ID = 2049252) Radio
Radiola Transistor 8 208-P; Amalgamated Wireless (ID = 2049253) Radio
Use red slider bar for more.
Radiola Transistor 8 208-P; Amalgamated Wireless (ID = 2049252) Radio
Select picture or schematic to display from thumbnails on the right and click for download.
Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1960–1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2N544 2N412 2N410 2N410 2N410 2N408 2N217S 2N217S 1N295
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Model: Radiola Transistor 8 208-P - Amalgamated Wireless
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 8 x 11 x 4.25 inch / 203 x 279 x 108 mm

Model 208-P is an eight transistor, battery-operated, superheterodyne portable receiver designed for the reception of the Medium Wave Band.

Features of design include:-

Ferrite Rod Aerial with provision for external aerial; high-gain I.F. transformer; Autodyne converter; high sensitivity, centre-tapped 80 ohms impedance speaker obviating the need of an output transformer.

  • Leather case in Grey, Black, Tan, Green & Fawn Crocodile.
  • 6" x 4" elliptical loudspeaker.

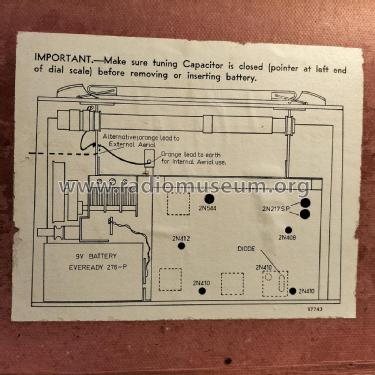

  • Battery Eveready Type 276P or equivalent.
  • Weight includes battery.
  • See also Electrice E812P & Westinghouse W812P.
Net weight (2.2 lb = 1 kg) 6 lb 3 oz (6.187 lb) / 2.809 kg
Price in first year of sale 42.50 AUS £
Literature/Schematics (1) - - Manufacturers Literature (AWA Manufacturers Supervised Service. (Also at
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Vol. 1, 1960 Supplement, Page A13.)
Literature/Schematics (3) J.R. Publications Transistor Radio Service Handbook (A Series Handbook, Page A17.)
Literature/Schematics (4) Mingay's Radio Electrical Weekly Price Service (REWPS) (Feb 1961 to Aug 1962.)

Model page created by Martin Kent. See "Data change" for further contributors.
