Radiola Transistor 8 B65

Radiola Transistor 8 B65; Amalgamated Wireless (ID = 1432929) Radio
Radiola Transistor 8 B65; Amalgamated Wireless (ID = 1348065) Radio Radiola Transistor 8 B65; Amalgamated Wireless (ID = 1348071) Radio
Radiola Transistor 8 B65; Amalgamated Wireless (ID = 1348078) Radio Radiola Transistor 8 B65; Amalgamated Wireless (ID = 1432928) Radio
Use red slider bar for more.
Radiola Transistor 8 B65; Amalgamated Wireless (ID = 1348065) Radio
Amalgamated Wireless: Radiola Transistor 8 B65 [Radio] ID = 1348065 912x608
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola Transistor 8 B65, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: AS300 AS300 AS302 AS300 2N408 AS311 or. AS313 AS128 AS311 1N87A 1N87A 1N87A AS9
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Batteries / addl. power jack / 9 / ? Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 0.75 W (max.)
from Radiomuseum.org Model: Radiola Transistor 8 B65 - Amalgamated Wireless
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 12.5 x 8.5 x 4.5 inch / 318 x 216 x 114 mm
Notes

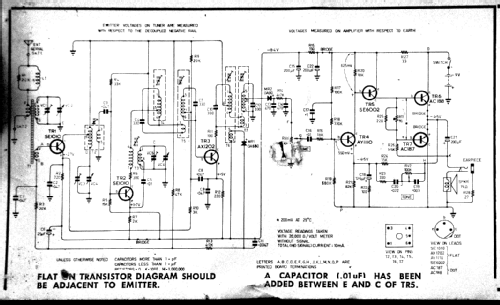

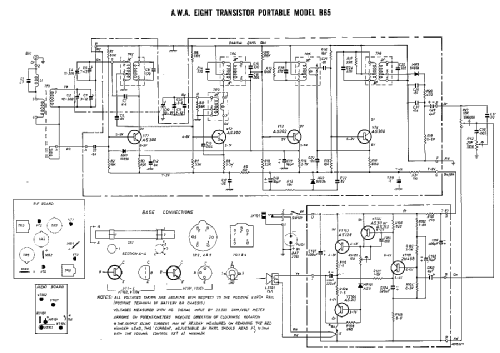

This is a heavy portable radio designed for long distance reception with good sensitivity and selectivity. In addition to the transistors, the design incorporates 3 (of) 1N87A diodes and an AS9. There are sockets for external power supply, aerial and earth. The battery can be either a Type 2761 or a pack of 6 x 1.5 Volt "C" cells. The schematic and dial cord route are on a label pasted on the inside rear cover. Weight is with a 2761 battery. There are two steel plates, one supporting the whole front, including the speaker and dial assembly and the second supports the tuning, tone and volume controls as well as the RF and AF circuit boards. The hollow ferrite rod antenna is 16 mm in diameter and 254 mm long. the front is chrome plated plastic with an anodised aluminium speaker grill.

Vinyl case in Tan or Black.

Net weight (2.2 lb = 1 kg) 8.125 lb (8 lb 2 oz) / 3.689 kg
Price in first year of sale 88.20 AUS $
Literature/Schematics (1) - - Manufacturers Literature (AWA Manufacturers Supervised Service, Feb 1969.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Group G7, 1970, Page A1-2.)

Model page created by Brian Wilson. See "Data change" for further contributors.
