Radiolette (Empire State) 32

Radiolette 32; Amalgamated Wireless (ID = 691425) Radio

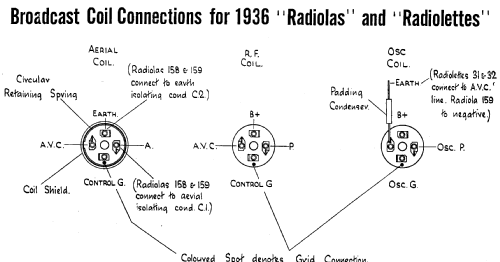

Radiolette 32; Amalgamated Wireless (ID = 1943267) Radio
Radiolette 32; Amalgamated Wireless (ID = 2430376) Radio Radiolette 32; Amalgamated Wireless (ID = 2430377) Radio
Radiolette 32; Amalgamated Wireless (ID = 987525) Radio Radiolette 32; Amalgamated Wireless (ID = 987527) Radio
Radiolette 32; Amalgamated Wireless (ID = 987528) Radio Radiolette 32; Amalgamated Wireless (ID = 987529) Radio
Radiolette 32; Amalgamated Wireless (ID = 987530) Radio Radiolette 32; Amalgamated Wireless (ID = 987531) Radio
Radiolette 32; Amalgamated Wireless (ID = 1722296) Radio Radiolette 32; Amalgamated Wireless (ID = 1722297) Radio
Use red slider bar for more.
Radiolette 32; Amalgamated Wireless (ID = 2430376) Radio
Amalgamated Wireless: Radiolette 32 [Radio] ID = 2430376 800x825
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiolette (Empire State) 32, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:
Original knobs. Replacement speaker cloth.

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6D6 6A7 6B7 42 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s); Reflex
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Radiolette 32 - Amalgamated Wireless
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 287 x 285 x 170 mm / 11.3 x 11.2 x 6.7 inch
Notes

AWA produced a series of Bakelite Empire State radios between 1934 and 1938.

Radiolette models R28, R29, R30, R31, R31A, R32, R37, R37A, R37B, R37C & Radiola  R48 &  R48G.

Empire State was not the official AWA name for the classic Art Deco Bakelite Radiolette but due to their popularity among worldwide collectors they are now known colloquially as the AWA Radiolette, Empire State Series of radios.

Chassis:
5 valve, reflexed superhet with an IF of 175 kHz.
The tuning capacitor frame is insulated from the chassis.
A "local-distance" switch at the rear of the chassis is provided for reducing overload in strong signal areas.The chassis is the same as Model 31 and was also used in the Bandmaster M656E.

CAUTION! Asbestos is used as a heat shield to line one side of the can holding the two B+ capacitors.

Cabinet:
This Model R32 was only available in grained Ivory and plain Ivory.

This Radiolette’s Art Deco Bakelite cabinet design was modelled on the wooden version AWA  Radiolette, Model 27 except with a square dial. Earlier Air King in the US designed models along these lines in 1933 with the Skyscraper 52.

Price in first year of sale 16.80 AUS £
Mentioned in Mingay's "Radio Diagram & I.F. Index (Radio Diagram & I.F. Index".)
Literature/Schematics (1) - - Manufacturers Literature (Radiola Service Manual 1936, Page 9.)
Literature/Schematics (2) Radio Trade Annual of Australia (6th Edition 1938, Page 311.)
Literature/Schematics (3) AWA Radiolette Book 1932-1949 (Edition 4, Jan 2018, Pages 68, 69, 73 & 95.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
