• Year
  • 1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 165122

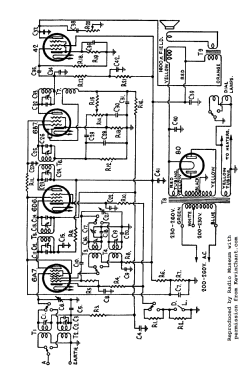

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s); Reflex
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 50 Hz, 200-260 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radiolette 41 - Amalgamated Wireless
  • Shape
  • Console with any shape - in general
  • Notes
  • Five valve, two band, AC operated superhetrodyne.

    Local distance sensitivity switch on the rear.

    Chassis used in the AWA Radiolette 38 and the  Bandmaster model 457DE.

  • Price in first year of sale
  • 24.00 Aus£

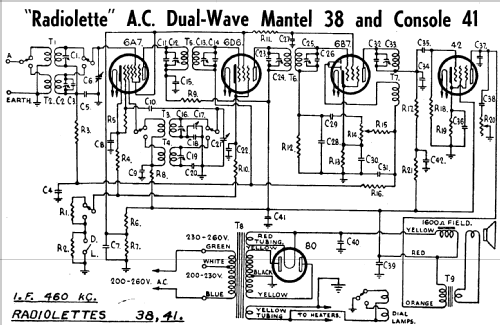

  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. I
  • Mentioned in
  • -- Original prospect or advert (New Zealand Herald 4 November 1937 Page 18)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
