For model A122, Ampex; San Carlos, CA:

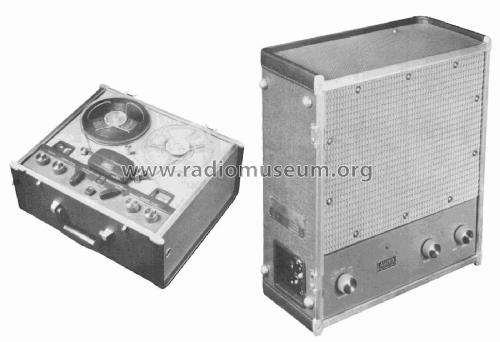

Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Ampex; San Carlos, CA
Year: 1957 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: 5879 12AU7 6V6GT 6V6GT 6AX5GT
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: A122 - Ampex; San Carlos, CA
Material Various materials
Shape Tablemodel, with any shape - general.
Notes

The Ampex models A121, A122 and A124 are designed for stereophonic tapes.  All models will record/playback on a half-track basis. This model can be used with amplifier/loudspeaker combinations A621 and A692 (also covered in this schematic).

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 382 Folder 5 dated 12-57)

Model page created by Dirk Taekels. See "Data change" for further contributors.



All listed radios etc. from Ampex; San Carlos, CA
