ADP2; Amplion, Alfred (ID = 485731) Radio

ADP2; Amplion, Alfred (ID = 485732) Radio

ADP2; Amplion, Alfred (ID = 907171) Radio
ADP2; Amplion, Alfred (ID = 907172) Radio
Use red slider bar for more.
ADP2; Amplion, Alfred (ID = 907172) Radio

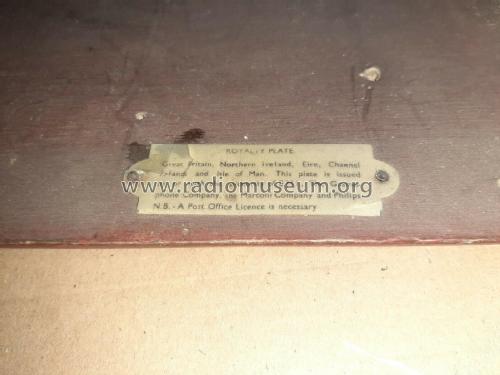

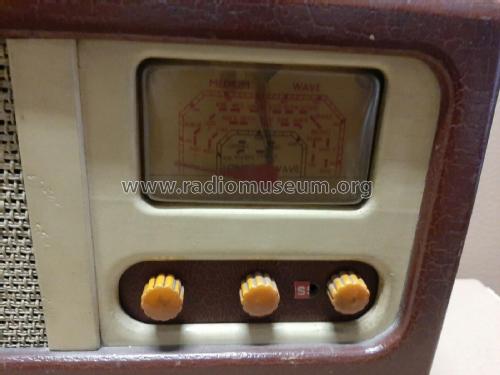

Amplion, Alfred: ADP2 [Radio] ID = 907172 400x307
Select picture or schematic to display from thumbnails on the right and click for download.
For model ADP2 3Q5, Amplion, Alfred Graham; GB (see also USA):
F T 21/49 S.625

Country:  Great Britain (UK)
Manufacturer / Brand:  Amplion, Alfred Graham; GB (see also USA)
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1A7GT 1N5GT 1H5GT 3Q5GT
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 1,5/90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: ADP2 [3Q5] - Amplion, Alfred Graham; GB see
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 14.5 x 10.25 x 7.5 inch / 368 x 260 x 191 mm
Notes Red crackle paint. Frame aerial consists of a MW winding plus a loading coil for LW. Frame aerial consists of a MW winding plus a loading coil for LW. Almost identical chassis as in the predecessor ADP1 but in different case. Other version uses Osram valves, different audio output valve (N14 or 1C5). Also mains/battery version "Alternative" (1939).
Source of data Radio! Radio!
Literature/Schematics (1) Paul Stenning CD vol 1. Trader sheet 883.

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Amplion, Alfred Graham; GB (see also USA)
Here you find 85 models, 62 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
