Dragon fly AR102

Dragon fly AR102; Amplion, Alfred (ID = 2389642) Speaker-P Dragon fly AR102; Amplion, Alfred (ID = 2389644) Speaker-P
Dragon fly AR102; Amplion, Alfred (ID = 2350373) Speaker-P Dragon fly AR102; Amplion, Alfred (ID = 164850) Speaker-P
Dragon fly AR102; Amplion, Alfred (ID = 164851) Speaker-P Dragon fly AR102; Amplion, Alfred (ID = 164852) Speaker-P
Dragon fly AR102; Amplion, Alfred (ID = 164853) Speaker-P Dragon fly AR102; Amplion, Alfred (ID = 164854) Speaker-P
Dragon fly AR102; Amplion, Alfred (ID = 164855) Speaker-P Dragon fly AR102; Amplion, Alfred (ID = 446425) Speaker-P
Use red slider bar for more.

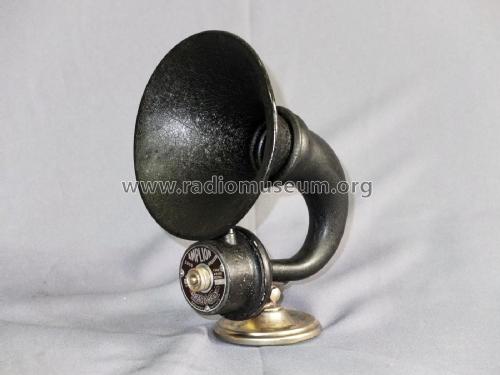

Dragon fly AR102; Amplion, Alfred (ID = 2389642) Speaker-P
Amplion, Alfred: Dragon fly AR102 [Speaker-P] ID = 2389642 1400x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dragon fly AR102, Amplion, Alfred Graham; GB (see also USA):
Collection privée (réf.: 894)

Country:  Great Britain (UK)
Manufacturer / Brand:  Amplion, Alfred Graham; GB (see also USA)
Year: 1924 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Horn / Ø 5.5 inch = 14 cm
Power out
from Radiomuseum.org Model: Dragon fly AR102 - Amplion, Alfred Graham; GB see
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 5.5 x 8.5 x 6 inch / 140 x 216 x 152 mm
Notes 2000 ohms; there is also the 120 ohm model AR 101.
Net weight (2.2 lb = 1 kg) 0.860 kg / 1 lb 14.3 oz (1.894 lb)
Collectors' prices
External source of data own collection; Hill: RadioRadio
Source of data -- Collector info (Sammler)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Amplion, Alfred Graham; GB (see also USA)
Here you find 85 models, 61 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
