Libellule AR 102

Libellule AR 102; Amplion, Alfred (ID = 377608) Speaker-P
Use red slider bar for more.
Libellule AR 102; Amplion, Alfred (ID = 377608) Speaker-P

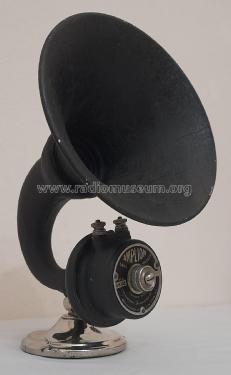

Amplion, Alfred: Libellule AR 102 [Speaker-P] ID = 377608 584x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Libellule AR 102, Amplion, Alfred Graham; GB (see also USA):
Amplion AR 102 magnetic horn speaker. This unit was found in Spain and is labeled in french. The sound of the speaker with its 5 inch wide horn is simply breathtaking.

Country:  Great Britain (UK)
Manufacturer / Brand:  Amplion, Alfred Graham; GB (see also USA)
Year: 1924 Category: Loudspeaker, headphone or earphone
Details
Power type and voltage No Power needed
Loudspeaker Horn / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Libellule AR 102 - Amplion, Alfred Graham; GB see
Material Metal case
Dimensions (WHD) 5 x 9 x 6 inch / 127 x 229 x 152 mm
Notes Small horn speaker with adjustable 2000 ohms system. Labelled in french. Type designation on system is AR 102.
Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Mentioned in Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 413)

Model page created by Ernst Erb. See "Data change" for further contributors.
