• Year
  • 1958 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 115721

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 9.75 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Fidelio [early] - Amroh NV Radio Bulletin
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Construction kit
  • Price in first year of sale
  • 100.00 HFL
  • Source of data
  • -- Original-techn. papers.
  • Literature/Schematics (1)

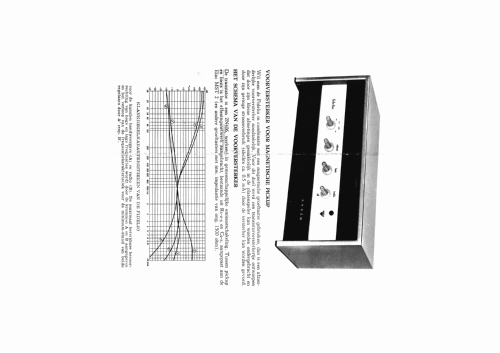

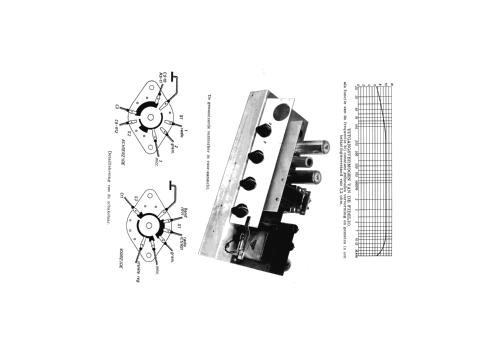

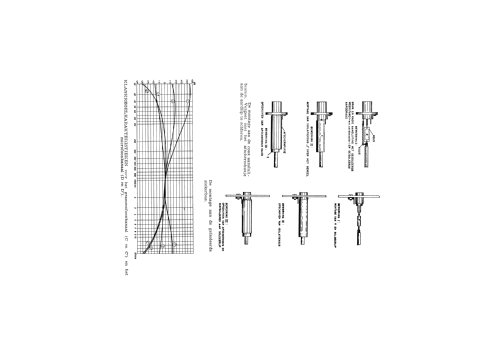

  • Radio Bulletin, 01-1959
  • Author
  • Model page created by Ed van der Weele. See "Data change" for further contributors.
