• Year
  • 1958 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 282913

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 467.5 kHz; 1 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 4.5 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

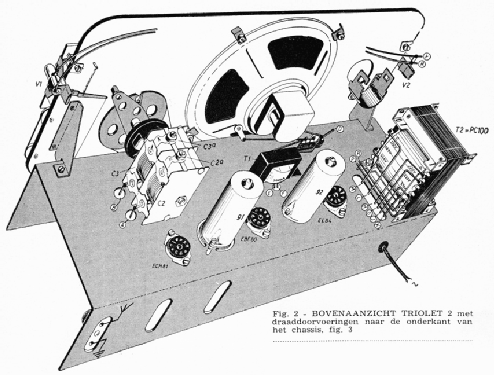

  • Model: Triolet 2 - Amroh NV Radio Bulletin
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Amroh chassis type: CH 53 or Minimax

    Tuning scale: TD 103 with glass plate 4040

    Loudspeaker: Bantam H



  • Price in first year of sale
  • 130.00 NLG
  • Mentioned in
  • Radio Bulletin (Radio Bulletin June 1958 and Amroh Jaarboek 1961)
  • Author
  • Model page created by Rob Majoor. See "Data change" for further contributors.
