Zephyr II (kit)

Amroh NV (Radio Bulletin monthly), Muiden

Data
Forum
Pictures
Collections

  • Year
  • 1958
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 224013

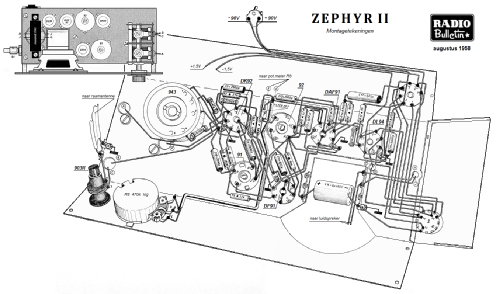

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 0
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Storage batteries (perhaps also batteries) / 220 / 90 & 6 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 0.34 W (undistorted)
  • from Radiomuseum.org
  • Model: Zephyr II - Amroh NV Radio Bulletin
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 230 x 190 x 170 mm / 9.1 x 7.5 x 6.7 inch
  • Notes

  • This kit can be powered by either 90V and 6V Batteries or a separate power unit, as shown in the schematics.

    For this model separate wooden cabinets were available for the receiver as well as for the power unit. The article in Radio Bulletin shows both cabinets.



    The given dimensions relate to the assembled cabinet of the receiver.

  • Author
  • Model page created by Rob Majoor. See "Data change" for further contributors.
