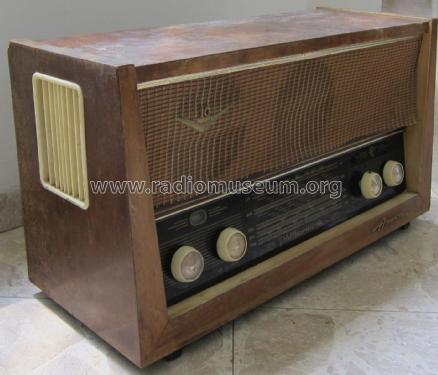

Philharmonic 759
Amron / Amcor; Herzliya
- Country
- Israel
- Manufacturer / Brand
- Amron / Amcor; Herzliya
- Year
- 1958 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 362627
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Philharmonic 759 - Amron / Amcor; Herzliya
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 640 x 350 x 260 mm / 25.2 x 13.8 x 10.2 inch
- Notes
-
Rotatable ferrite rod antenna. The receiver has 4 identical speakers.
One of the bigger models of Amron. It appears in Israeli Service Book 1 that was issued in 1959.
- Net weight (2.2 lb = 1 kg)
- 11.3 kg / 24 lb 14.2 oz (24.89 lb)
- Mentioned in
- Israeli Service Book 1
- Author
- Model page created by Karol Gillon. See "Data change" for further contributors.
