• Country
• Israel

• Manufacturer / Brand
• Amron / Amcor; Herzliya

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 362442

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes

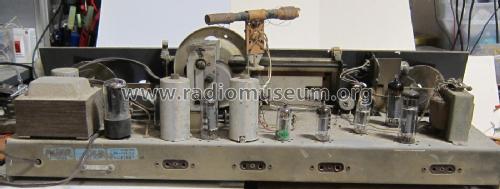

• ECH81 EBF80 6AV6 6AV6 EM80 6AV6 EL84 EL84 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 4 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker

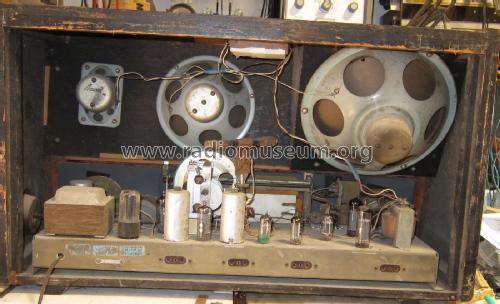

• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

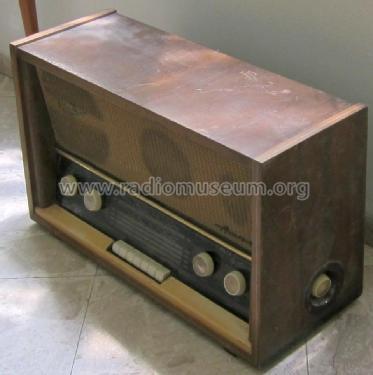

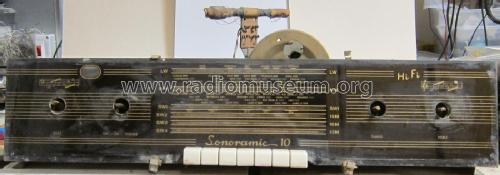

• Model: Sonoramic 10 959 - Amron / Amcor; Herzliya

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 680 x 390 x 270 mm / 26.8 x 15.4 x 10.6 inch

• Net weight (2.2 lb = 1 kg)
• 13.2 kg / 29 lb 1.2 oz (29.075 lb)

• Literature/Schematics (1)
• Israeli Service Book 1

• Author
• Model page created by Karol Gillon. See "Data change" for further contributors.
