• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1977 ??

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 201482

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• unknown_tr TDA2020 TDA2020 TBA231

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 220; 250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

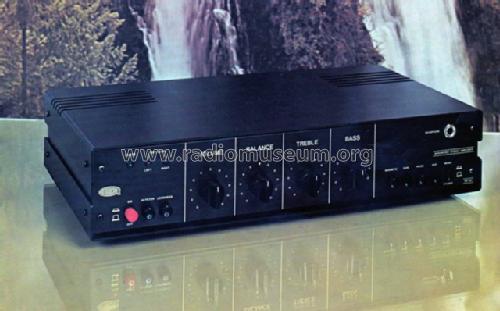

• Model: Amplificatore IC Stereo UK186 - Amtron, High-Kit, Amtroncraft;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 360 x 75 x 200 mm / 14.2 x 3 x 7.9 inch

• Notes
• Oltre ai transistor sono presenti anche 12 diodi e 3 integrati, 2 TDA2020 power audio, 1 TBA231 preamplificatore di ingresso magnetico, venduto in scatola di montaggio o gia' montato,distribuito dalla GBC MILANO.

• Author
• Model page created by Pasquale Baiocato. See "Data change" for further contributors.
