IC Stereo Amplifier Micro Line UK537

Amtron, (High-Kit, Amtroncraft); Milano

  • Year
  • 1978 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 204364

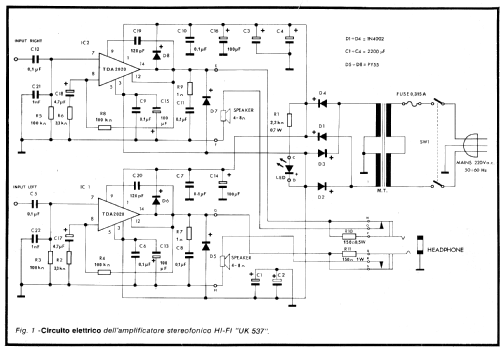

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker

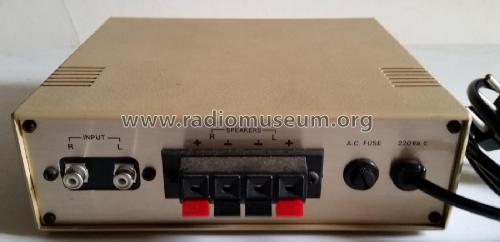

  • - This model requires external speaker(s).
  • Power out
  • 18 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: IC Stereo Amplifier Micro Line UK537 - Amtron, High-Kit, Amtroncraft;
  • Shape

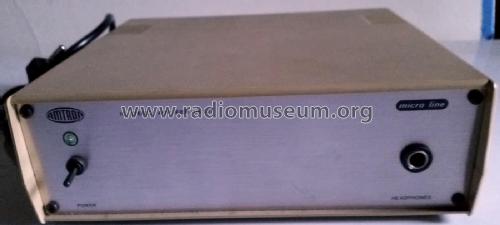

  • Book-shelf unit.
  • Dimensions (WHD)
  • 220 x 80 x 140 mm / 8.7 x 3.1 x 5.5 inch
  • Notes
  • Amplificatore stereo linea MICROLINE, impedenza 4-8 ohm, risposta di frequenza 25-40000 Hz, come semiconduttori usa soltanto due TDA 2020 finali audio, e 9 diodi, distribuito anche in KIT dalla GBC MILANO.
  • Author
  • Model page created by Pasquale Baiocato. See "Data change" for further contributors.
