51-HE

51-HE; Anglo Española de (ID = 598069) Radio

51-HE; Anglo Española de (ID = 869016) Radio

51-HE; Anglo Española de (ID = 869015) Radio

51-HE; Anglo Española de (ID = 1703621) Radio
Use red slider bar for more.
51-HE; Anglo Española de (ID = 598069) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Spain
Manufacturer / Brand:  Anglo Española de Electricidad S.A. (AEESA)
alternative name

Sdad. Anglo Esp. de El. || Sociedad Anglo
Brand
AEESA
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH42 EAF42 EAF42 EL41 EL41 AZ41 AZ41
Main principle Superheterodyne (common); ZF/IF 422,5 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 12 W (unknown quality)
from Radiomuseum.org Model: 51-HE - Anglo Española de Electricidad
Notes Toma para "Hilo que habla" Toma para fono Bandas: Onda Normal de 520 a 200 mts. Onda Pesquera de 200 a 155 mts. Onda Corta de 52 a 33.2 mts. Onda Corta de 33.2 a 23 mts. Onda Corta de 21.4 a 1607 mts. Onda Corta de 16.7 a 13.6 mts.

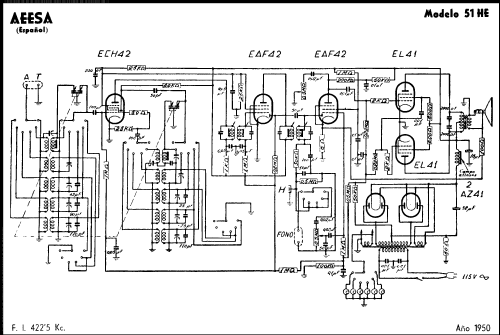

Literature/Schematics (1) -- Schematic
Literature/Schematics (2) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
