• Year
  • 1960 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 160694

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details

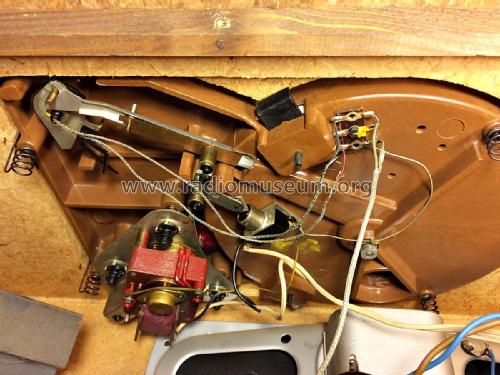

  • Record Player (not changer); Wired Wireless Receiver (RF!)
  • Power type and voltage

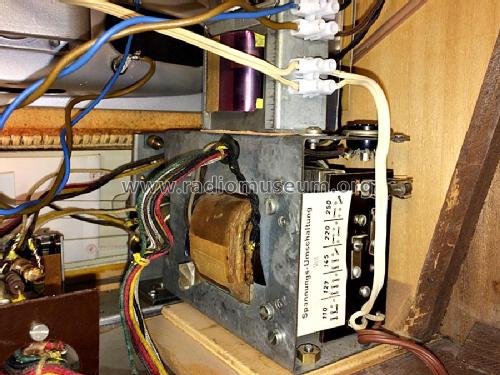

  • Alternating Current supply (AC) / 110; 127; 145; 220; 250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Phonosuper E6120/31 - Apco AG Apparate Companie AG;
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 540 x 325 x 285 mm / 21.3 x 12.8 x 11.2 inch
  • Net weight (2.2 lb = 1 kg)
  • 12 kg / 26 lb 6.9 oz (26.432 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Gil Silva. See "Data change" for further contributors.
