Apex AC36 early, white dial

Apex AC36; Apex Electric, Pool; (ID = 44564) Radio

Apex AC36; Apex Electric, Pool; (ID = 652552) Radio
Apex AC36; Apex Electric, Pool; (ID = 44557) Radio Apex AC36; Apex Electric, Pool; (ID = 44558) Radio
Apex AC36; Apex Electric, Pool; (ID = 515495) Radio Apex AC36; Apex Electric, Pool; (ID = 1613412) Radio
Apex AC36; Apex Electric, Pool; (ID = 1613413) Radio Apex AC36; Apex Electric, Pool; (ID = 1679560) Radio
Apex AC36; Apex Electric, Pool; (ID = 1679563) Radio Apex AC36; Apex Electric, Pool; (ID = 1679567) Radio
Apex AC36; Apex Electric, Pool; (ID = 1679569) Radio Apex AC36; Apex Electric, Pool; (ID = 1679571) Radio
Use red slider bar for more.
Apex AC36; Apex Electric, Pool; (ID = 44557) Radio
Apex Electric, Pool;: Apex AC36 [Radio] ID = 44557 933x556
Select picture or schematic to display from thumbnails on the right and click for download.
For model Apex AC36 early, white dial, Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)

Country:  United States of America (USA)
Manufacturer / Brand:  Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)
alternative name

Apex Electric Mfg. || Case Electric || Melrose || United States Radio & T
Year: 1928/1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UX226 UX226 UX226 UY227 UX226 UX171A UX280
Main principle TRF without regeneration; Neutrodyne
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt

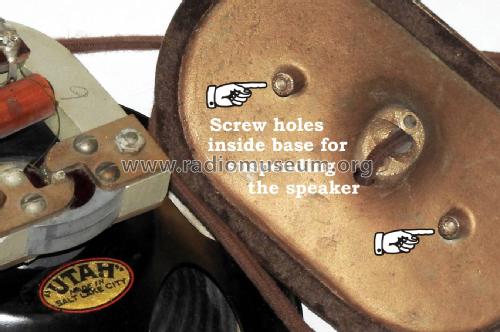

Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Apex AC36 [early, white dial] - Apex Electric, Pool; Chicago;
Material Metal case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 17.5 x 7 x 12 inch / 445 x 178 x 305 mm
Notes One dial (primary tuning control knob)
Price in first year of sale 85.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965


All listed radios etc. from Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)
Here you find 219 models, 80 with images and 125 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Apex Electric, Pool;: Apex AC36
Threads: 1 | Posts: 1
Hits: 2028     Replies: 0
apex: Apex Mod.36 Neutrodyne
Michael Seiffert
24.Feb.04
  1 Röhrenbestückung:CX-326;CX326;CX326;C-327;CX-326;CX-371A;Cx-380

Apex Electric, Pool;: Apex AC36
