T4055

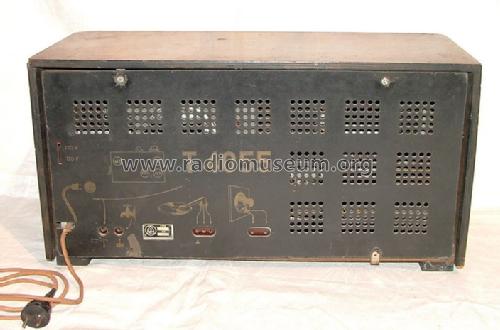

T4055; Apsitis & Zhukovskis (ID = 101098) Radio T4055; Apsitis & Zhukovskis (ID = 100644) Radio
T4055; Apsitis & Zhukovskis (ID = 100645) Radio T4055; Apsitis & Zhukovskis (ID = 100643) Radio
T4055; Apsitis & Zhukovskis (ID = 100646) Radio
Use red slider bar for more.
T4055; Apsitis & Zhukovskis (ID = 101098) Radio
Apsitis & Zhukovskis: T4055 [Radio] ID = 101098 772x512
Select picture or schematic to display from thumbnails on the right and click for download.
For model T4055, Apsitis & Zhukovskis, Riga, LV

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  Apsitis & Zhukovskis, Riga, LV
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 EL11 AZ11 EFM11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker
Power out 4 W (unknown quality)
from Radiomuseum.org Model: T4055 - Apsitis & Zhukovskis, Riga, LV
Material Wooden case
Dimensions (WHD) 550 x 295 x 250 mm / 21.7 x 11.6 x 9.8 inch
Source of data -- Schematic

Model page created by Nikolaj Baranov. See "Data change" for further contributors.



All listed radios etc. from Apsitis & Zhukovskis, Riga, LV
Here you find 13 models, 12 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
