• Country
• Belgium

• Manufacturer / Brand
• Radio Arel (A.R.E.L.); Antwerpen, Schoten

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78958

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH41 or ECH42 EF41 EBC41 EL41 EM4 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

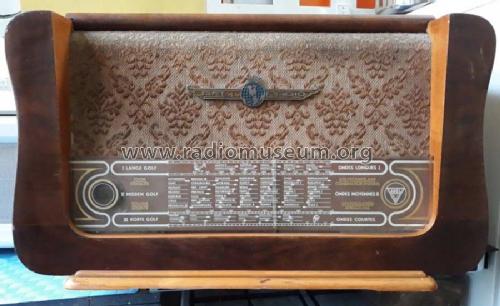

• Model: 122A - Radio Arel A.R.E.L.; Antwerpen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 660 x 375 x 400 mm / 26 x 14.8 x 15.7 inch

• Notes

• Sensitivity 10 to 16 microvolt. Magic eye and tone regulation, connection for PU and second speaker. An ECH42 is also used instead of ECH41.

• Price in first year of sale
• 475.00 Hfl

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman

• Mentioned in
• Radiowereld 29 mei 1952

• Author
• Model page created by Bruno Brasseur. See "Data change" for further contributors.
