• Country
• Italy

• Manufacturer / Brand
• AREL; Milano

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30499

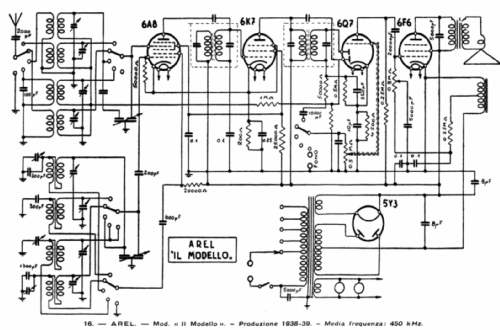

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6F6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

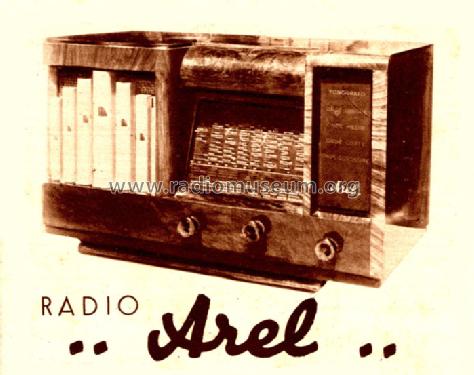

• Model: Il Modello - AREL; Milano

• Shape
• Tablemodel, low profile (big size).

• Notes

• Labirinto acustico a canne d'aria vibranti.

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Literature/Schematics (4)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
