• Country
• Germany

• Manufacturer / Brand
• Argus Radiowerk, Heribert Schulten; Orsoy (Niederrhein)

• Year
• 1950/1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 360160

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECH42 EAF42 EAF42 EAF42 EM34 EL41 AZ41

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Power out
• 3.9 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

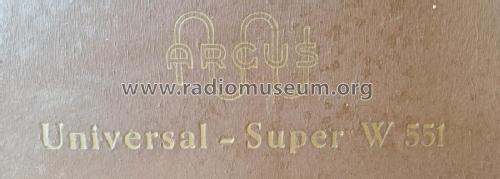

• Model: Condor Universal Super W551 - Argus Radiowerk, Heribert

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 400 x 300 mm / 23.6 x 15.7 x 11.8 inch

• Notes

• AM-ZF mit 4-Kreis- und 2-Kreis-Bandfilter. Flankendemodulation für UKW/FM.

  Siehe auch Argus Condor W551D (WD551D) mit Ratiodetektor als FM-Demodulator.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Thalhofer. See "Data change" for further contributors.
