• Country
• United States of America (USA)

• Manufacturer / Brand
• Arkay International Inc.; Jamaica (NY)

• Year
• 1960 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 135434

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC83 ECC82 ECC82 ECC82 ECC83 ECC83 EL84 EL84 EL84 EL84 GZ34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 28 W (28 W max.)

• Material
• Metal case

• from Radiomuseum.org

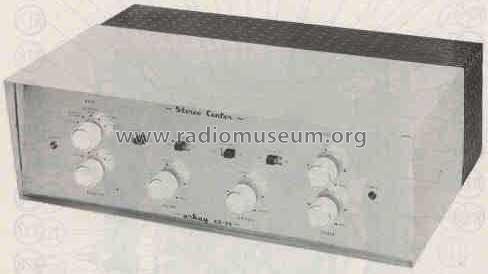

• Model: CS-28 - Arkay International Inc.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 16 x 5 x 9 inch / 406 x 127 x 229 mm

• Notes

• The Arkay Model CS-28 is a AC Operated 11 Tube Stereo Amplifier.

  Price:

  Kit - $64.95 (USA)

  Built - $99.95 (USA)

  The CS-28 is a dual 14 watt amplifier. The outputs can be combined for a full 28 watts output to a single speaker system.

• Net weight (2.2 lb = 1 kg)
• 29 lb (29 lb 0 oz) / 13.166 kg

• Price in first year of sale
• 99.95 USA

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 12-60, Set 511, Folder 4)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
