Robin TR802/AM

Robin TR802/AM; ART - Panart; Milano (ID = 921421) Radio

Robin TR802/AM; ART - Panart; Milano (ID = 921422) Radio

Robin TR802/AM; ART - Panart; Milano (ID = 945147) Radio
Use red slider bar for more.
Robin TR802/AM; ART - Panart; Milano (ID = 921421) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  ART - Panart; Milano
Brand

Depaphon
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC170 OC169 OC169 OC75 OC74 OC74
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Robin TR802/AM - ART - Panart; Milano

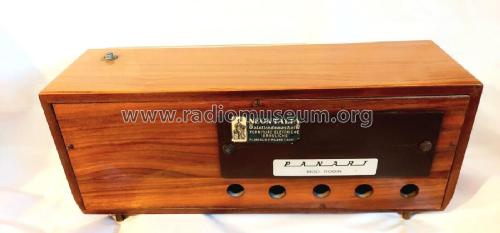

Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 370 x 140 x 110 mm / 14.6 x 5.5 x 4.3 inch
Notes Esiste anche marcato anche Panart o Kendall's.
Price in first year of sale 36'000.00 ITL

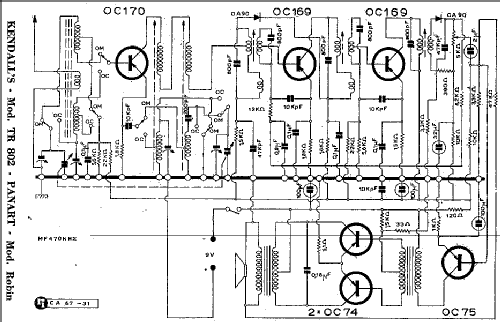

Literature/Schematics (1) ANNUARIO ANIE 1963-64

Model page created by Enrico Bonisolo. See "Data change" for further contributors.
