For model Arvin 402 Ch= RE-55, Arvin, brand of Noblitt-Sparks Industries:
USA; Arvin, Noblitt-Sparks Industries, Model 402 Ch= RE-55 - 1

Country:  United States of America (USA)
Manufacturer / Brand:  Arvin, brand of Noblitt-Sparks Industries
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: 25B8GT 50L6GT 35Z5GT
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Arvin 402 Ch= RE-55 - Arvin, brand of Noblitt-Sparks
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 6.5 x 5.125 x 3.875 inch / 165 x 130 x 98 mm

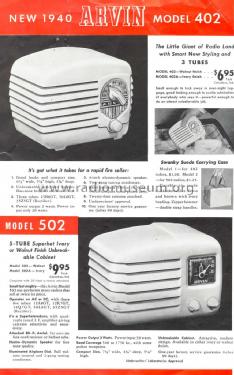

Notes The Arvin model 402 in a metal "Walnut" cabinet and the same in Ivory as model 402A can be seen 1939 at least in two fliers "New 1940 Arvin Radios". The two 3-tube AC/DC models have a twenty-foot antenna attached. Band coverage of the Arvin 402 and 402A is 540 to 1750 kc which includes some police reception. Power consumption 25 Watts.
Price in first year of sale 6.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Guide to Old Radios

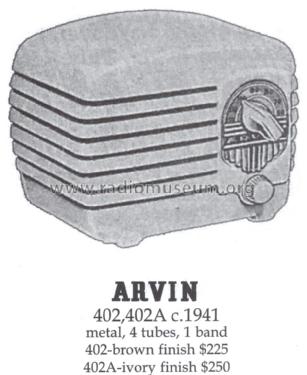

Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 38.)
Literature/Schematics (2) Table Top Radios Vol. 4 Stein 2003 (page 39.)
